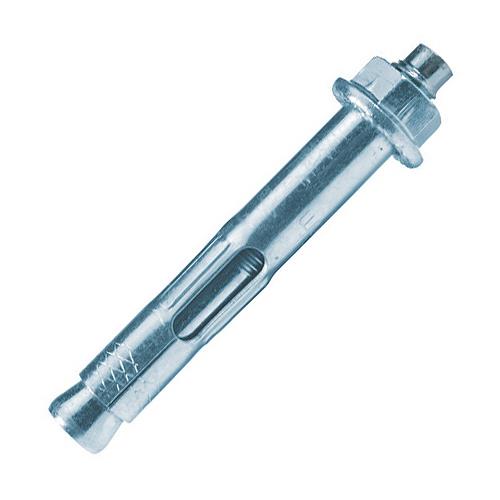

Light sleeve anchor for push-through installation.
When the hexagonal nut or bolt is tightened, the tapered screw is pulled into the expansion sleeve and expands it against the hole wall.
Diff erent head shapes available:
– stud with hexagon nut (FSL-B)
– hexagon head screw (FSL-S)
Diameters 6 to 20 mm.
Zinc plated steel version for indoor use.
Suitable for:
Non-cracked con crete
≥ C12/15.
Natural stone with dense structure.
For fi xing of:
Steel constructions.
Type: FSL 10/12 B (10 x 50)
Thread ∅ 8M
Drill-∅ do 10mm
Total length L 58mm
Min. drill hole depth for through installtion mode h 60mm
Min. embedment depth e 30mm
Max. usable length tfi x 12mm
Width across nut 13SW
Mean ultimate loads Tensile Nu 1) 11.5kN
Nrec 2.9kN
Vrec 2.5kN
Min. axial spacing 105mm
Min. edge distance 55mm
