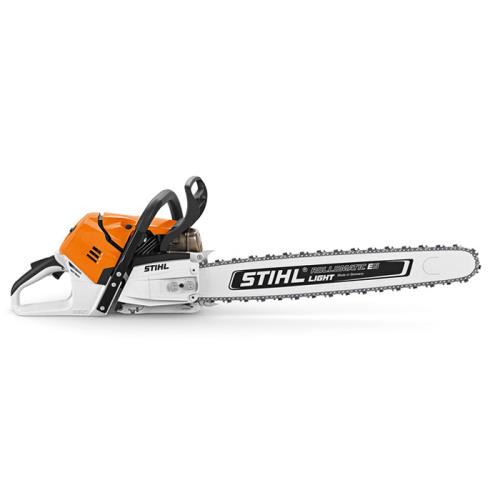

MS 500i Powerful chainsaw with electronically controlled fuel injection
First ever chainsaw with STIHL Injection Technology.
The best power-to-weight ratio on the market, and the simplest operation.
Ideally suited to arboriculture and harvesting and processing large timber.
All thanks to its unique lightweight design and outstanding acceleration.
New bumper spikes, HD2 filter, captive nut on the sprocket cover for easy chain change, controlled-delivery oil pump, and tool-free fuel cap for safe and easy filling with fuels and lubricants.
STIHL injection (i) technology enables the MS 500i to achieve extremely high performance with extraordinarily low displacement and low weight. The saw uses innovative technology to achieve rapid acceleration from 0 to 100 km/h in an unbelievable 0.25 seconds. The powerful saw is ready to use right away. Sensors measure air pressure and internal and external temperature, and pass information on to the control unit. This can use the identified values to determine the optimum fuel quantity and ignition timing.
Best power-to-weight ratio - Its revolutionary chainsaw engine technology, and resulting intelligent lightweight construction result in the best power-to-weight ratio on the market. The optimised design – with lightweight sprocket cover, more compact engine unit, flywheel with a low design height, and a reduced-weight crankshaft adapted to the low weight of the flywheel – makes work significantly more comfortable. The MS 500i is ideal for heavy timber felling, cutting into lengths, and pruning.
Decompression valve - The decompression valve is part of the easy starting system. The valve should be pressed before starting to reduce the compression pressure when starting, as well as reducing the effort needed to pull the starter rope. The decompression valve is semi-automatic; it must be pressed manually before starting, but then closes automatically.
Very easy to start, whether starting from cold or - The starting process is perfect, with no need for a start position, and easy access to the purger.
STIHL 2-MIX-Engine - 1-in-4 channel technology. The economical STIHL 2-MIX engine with 1-in-4channel technology features a high torque over a wide speed range. The chainsaw provides fuel savings of up to 20% compared to STIHL two-stroke engines in the same performance class without 2-MIX technology. Exhaust emissions are reduced by up to 50%.
Anti-vibration system - Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.
HD2 filter with radial seal - The new HD2 air filter, made from PET material and featuring a radial seal, prevents the intake of fine dust particles. The hermetic seal increases the service life of the engine and reduces wear.
Displacement cm³: 79.2
Power output kW/bhp: 5/6.8
Weight kg 1): 6.2
System weight kg 2): 7.47 / 7.78
Power-to-weight ratio kg/kW: 1.2
Sound pressure level dB(A) 3): 106
Sound power level dB(A) 3): 119
Vibration values left/right m/s² 4): 4.2/4
Oil pump: Adjustable
Tank volume l: 0.78
Chain pitch: 3/8"
Chain tensioning: Side chain tensioner
Sprocket - number of teeth: 7
Filter: Cartridge filter HD2
Bumper spike: Steel spike
Cylinder: 4 channel / chrome
Oil tank volume cm3: 325
Sprocket: Rim sprocket
Anti vibration system: Full AV-System
Filler cap: Tool-free tank cap
Starting system: ElastoStart / manual fuel pump (purger) / non-return ignition / decompression valve / stop button
EPA Certified fuel consumption l/h: 2.707
CO2 g/kWh: 707
1) Without fuel, without bar and chain,2) Unfueled, with guide bar and saw chain,3) K-factor according to DIR 2006/42/EC = 2.5 dB (A),4) K-factor according to DIR 2006/42/EC = 2m / s ²
