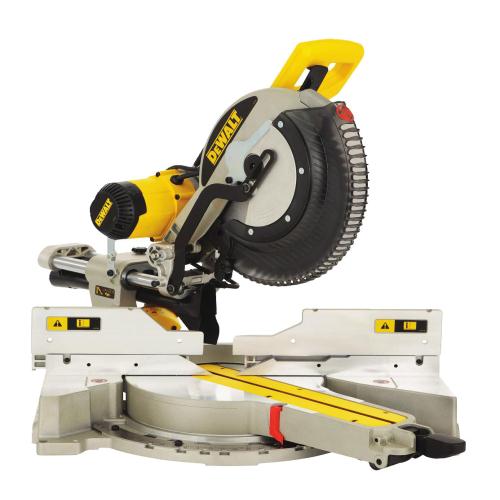

Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life fo the tool.
New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
Mitre lock system allows the user faster and easier to adjust angles between 0-50° left and 0-60 degrees to the left
The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Linear horizontal rails with bronze to provide maximum precision when cutting materials with width up to 345 mm to be cut
Compact and lightweight design characteristics deliver a saw, it is easy to move around the workplace
Very good dust control and støvblåsing away from work
Electronic speed control for adjusting cutting speed when using the non-ferrous materials (material clamps should be used for cutting non-ferrous materials
The unique depth stop allows the saw can also be used to track and false work
Barcode: 5035048332320
Power Input: 1675 Watts
Power Output: 960 Watts
Blade Speed: 1900 - 3800 rpm
Blade Diameter: 305mm
Blade Bore: 30mm
Bevel Capacity: 49/49°
Mitre Capacity right: 60°
Mitre Capacity left: 50°
Cutting Capacity at 90°/90°: 303 x 110 mm
Cutting Capacity at 90°/90°: 345 x 76 mm
Cutting Capacity at 45°/90°: 268 x 63 mm
Cutting Capacity at 45°/90°: 345 x 44 mm
Cutting Capacity at 90°/45°: 211 x 112 mm
Cutting Capacity at 90°/45°: 244 x 76 mm
Max Capacity 45°/45°: 212 x 76 mm
Depth: 470mm
Length: 770mm
Height: 396mm
Total Shipping Weight: 40kg
