1 800 W • 305 mm • 3 200 min⁻¹
Efficient high-capacity saw with a laser for quick and accurate cutting

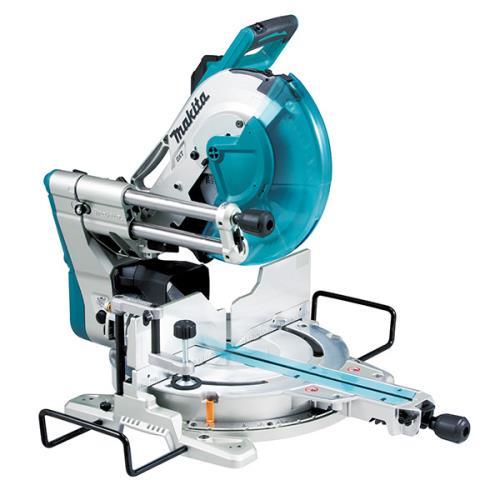

An accurate high-capacity mitre saw with a 1 800 W motor for professional use. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Equipped with an excellent dust removal function and a built-in laser that indicates line-of-cut.
User benefits
Unique rail sliding system design allows operation flush against a wallLaser marker allows easy and accurate alignment with ink lineCapacity 90°
107 x 363 / 92 x 382 mm
Continuous Input Power
1800 W
No load speed
3200 min⁻¹
Capacity 45°
107 x 255 / 92 x 268 mm
Capacity 45° left
71 x 363 / 61 x 382 mm
Bevel capacity right 45°
54 x 363 / 44 x 382 mm
Max. Bevel Range (Left)
48 / 48 º
Max. Mitre Range (Left)
60 / 60 º
Blade Diameter
305 mm
Bore Size (Arbor Diameter)
30 mm
Power Supply Cord
2,5 m
Sound Power Level (LWA)
100 dB(A)
Sound Pressure Level (LpA)
91 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Vibration Level (3 axes)
≤ 2,5 m/s²
Vibration Uncertainty (K Factor)
1,5 m/s²
Laser Class
2M
Weight Without Cable
29,5 kg
Product Dimensions (L x W x H):
898 x 664 x 725 mm
