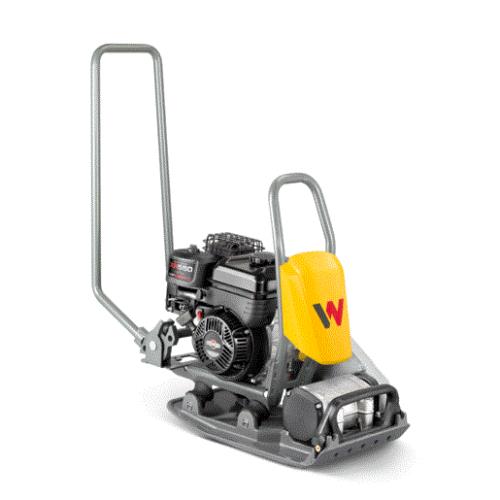

Wacker Neuson Bps1030b Compactor Plate

Briggs & Stratton Engine 300MMX496MM
(£794.99 (EX VAT)) price : £953.99
This item has been classified as a heavy item and would incur an extra shipping charge.
Quantity :
In stock, delivery 3 - 5 working days. FREE POSTAGE TO UK MAINLAND ON ORDERS ABOVE £90.00 EXCLUSIONS MAY APPLY SEE TERMS.

For VAT exempt Export enquiries please contact us PRIOR to ordering

Recommended Alternatives

  • Belle Pclx32e+ Battery Compactorplate

    Belle Pclx32e+ Battery Compactorplate

    price: £1,512.00

  • Belle Pcx 2045 Hatz Diesel Compacting Plate

    Belle Pcx 2045 Hatz Diesel Compacting Plate

    price: £2,520.00

  • Belle Pclx400w 16

    Belle Pclx400w 16" Compactors Water Tank

    price: £1,259.99

  • Bartellglobal Br2750 17

    Bartellglobal Br2750 17" Reversible Compactor

    price: £2,559.99

  • Wacker Neuson Bp1000 Battery Pack

    Wacker Neuson Bp1000 Battery Pack

    price: £1,349.99

Outstanding driving characteristics: Whether on asphalt or soil - the BPS can be maneuvered effortlessly and delivers impeccable surfaces.

Neat finishes on curbs are easily made due to the angular side profile of the base plate.

The guide handle responds clearly to steering movements and still achieves low hand-arm vibrations of less than 5 m/s², which enables long and comfortable work.

Easy transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine easy and comfortable.

Maintenance-free: The BPS series is equipped with an extremely robust V-belt and has bearings with lifetime lubrication. This makes it practically maintenance-free.

Accessories, available separately: wheel set and pavement gliding device round off the possible uses.

MECH. DECLARATIONSMetric
Broad320mm
Length of drawbar in working position930mm
operating weight53.0kg
ground clearance663mm
Height663mm
ENVIRONMENTAL CHARACTERISTICSMetric
storage temperature range-15 - 40℃
Measurement uncertainty HAV0.5m/s2
Sound power LWA, guaranteed105.0dB(A)
Sound power LWA, measured104.0dB(A)
HAV sum level (average value)4.6m/s2
Sound power LWA (standard)EN500-4
HAV sum level (norm)EN500-4
Sound pressure level LpA94.0dB(A)
operating temperature range-15 - 45℃
COMBUSTION ENGINEMetric
Spark plug(s) typeTorch F6TC
Standard (nominal power)SAE J1940
engine typegasoline engine
oil filling min.0.60l
inclination max.15.0°
air filterdry air filter
oil specificationSAE 5W-30
CO2 (NRSC)805.00g/kWh
combustion processfour stroke
engine manufacturerBriggs & Stratton
operating speed3,600 rpm
power max.2.6kW
oil filling max.0.60l
engine designationXR550_MJDGS.1271UA _U14-083132
starter guyrecoil starter
coolingair cooling
displacement127cc
Oil quantity max. with filter change0.60l
Speed ​​(power max.)3,600 rpm
rated capacity2.6KW, 2.6KW
rated speed3,600 rpm, 3,600 rpm
Norm (operating power)SAE J1940
emission limitsUS Phase 3, EU Stage V
fuel typepetrol
Upper engine speed or load3,600 rpm
cylinder1
mixture preparationcarburetor
MECH. PERFORMANCE SPECIFICATIONSMetric
gradeability36.4%
area performance500 m2/h
leader26.00 m/min
Vibrations (Hz)98Hz
vibrations5,880 rpm
power transmissionFKR
centrifugal force10,000kN
