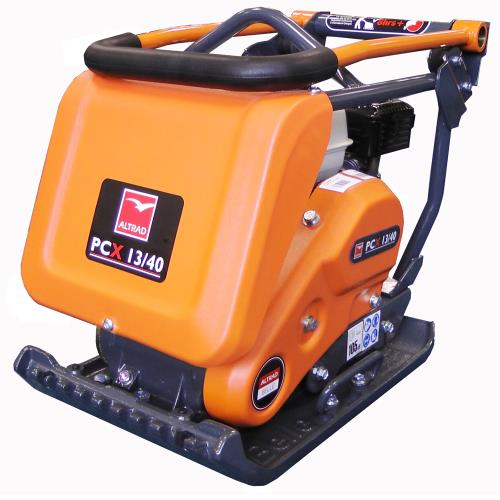

Belle Pcx 13/40 16" Single Compactor Plate

4.0hp Honda Petrol 16" 400mm X 606mm- Fc4000e
(£949.17 (EX VAT)) price : £1139.00
This item has been classified as a heavy item and would incur an extra shipping charge.
Quantity :
Awaiting delivery, Buy Now for shipment when available

For VAT refunds on orders to EU Countries, Channel Islands or Non-EU Countries, kindly send us an email or give us a call

Recommended Alternatives

  • Belle Pclx320 Compacting Streetworks

    Belle Pclx320 Compacting Streetworks

    price: £1,154.99

  • Belle Pcx 2045 Hatz Diesel Compacting Plate

    Belle Pcx 2045 Hatz Diesel Compacting Plate

    price: £1,980.00

  • Wacker Neuson Vp1030aw Single Direction Plate

    Wacker Neuson Vp1030aw Single Direction Plate

    price: £990.00

  • Wacker Neuson Bps1030a Single Direction Plate

    Wacker Neuson Bps1030a Single Direction Plate

    price: £905.00

  • Belle Pcx 12/36 14

    Belle Pcx 12/36 14" Compactor Plate

    price: £1,234.80

Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.

Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.

Lifting points and front lift cage offer easier loading and unloading for operator convenience and heavy contractor usage.

Large capacity water tank is built into the protective frame.

Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.

The spraybar is fully protected from damage, easily positioned,with integral paving pad clamp points.

Plate Width: 400mm

Plate Length: 606mm

Engine Power: 4Hp

Weight: 83.5kg

Static Pressure: 520kg/m²

Centrifugal Force: 13kN

Travel Speed: 20m/min

Vibration Level: 3.2m/sec²

Sound Power Level: 105dB(A)
