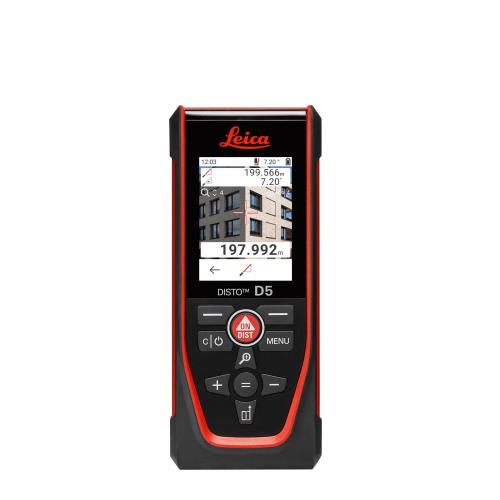

The Leica DISTO D5 is particularly suitable for distance measurements outdoors.
Thanks to the digital pointfinder, aiming is no problem even in sunshine and at very long distances.
Both the target and measurement results can be seen very clearly on the large display with IPS technology.
For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances.
High flexibility is provided by various features, such as Smart Horizontal Mode, height tracking, profile or angle measurements.
This allows any measurement situation on the construction site to be resolved quickly and efficiently.
The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and further processed to support an efficient and error-free digital workflow.
Range up to 200 meters
± 1.0 mm accuracy, 0.1 mm resolution
Measuring slopes
Smart horizontal mode
Fast startup time
Collapsible end piece with automatic detection
Bright and clear 2.4-inch IPS display with scratch-resistant lens
Activate measurements with gestures
Memory for 50 measurements
Rechargeable Li-Ion battery
Charging via USB-C
Keyboard mode, simulates data transfer via Bluetooth®
Bluetooth® 5.0 technology for error-free data transmission
Works with DISTO Plan app (iOS and Android) and DISTO transfer (Windows)
Accuracy under favorable conditions * 1.0 mm / 1/16"
Accuracy under adverse conditions ** 2.0 mm / 1/8″.
Range at favorable conditions 0.05 - 200 m / 0.07 - 660 ft
Range in adverse conditions 0.05 - 120 m / 0.07 - 400 ft
Smallest unit displayed 0.1 mm / 1/32 inch
X-Range Power technology yes
Laser class 2 635 nm, <1 mW
Digital pointfinder with 4-fold zoom yes
Measuring range inclination 360°
Measurement tolerance for inclination ± 0.2°
ø laser tip | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash-proof)
Auto. laser shutdown after 90 s
Auto. shutdown after 180 s
Bluetooth® Smart Bluetooth® v5.0
Bluetooth® range of up to 10 m
Battery life (Li-Ion 2,000 mAh) up to 5,000 readings up to 10 hours of operating time
Dimensions (H x D x W) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 inches
Weight (with batteries) 180 g / 6.35 oz
Storage temperature range | operation -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F
