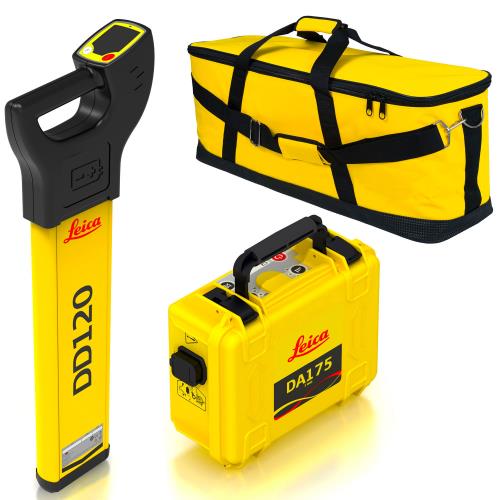

Supplied with:
DD120 Cable Locator 8/33KHz – 872938
DA175 – 1 Watt Smart Transmitter,incl. 4 x D cell Akaline batteries – 949370
System carry bag for Locators, Signal Transmitters etc. 850276
3 year warranty
Leica DD120 Locator
Transmitter modes: 33kHz / 8kHz / Auto
Depth range: Line 0.3m to 3m / Sonde 0.3m to 3m
Depth Detection: 3m (23ft)
IP66 Rated
DA175 Signal Transmitter
For use with DD120 & DD130 Locator
Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω
IP67 rated – cover closed | IP65 rated – cover open
Transmitter modes: 33kHz / 8kHz / 512 Hz / 640 Hz
Battery 4 x D alkaline (IEC LR20), supplied
Battery operating time 30 h
,,
System Carry Bag
System carry bag for locators, signal transmitters and accessories.
MODE | DD120 | DD130 |
|---|
Power | 50 / 60 Hz | 50 / 60 Hz |
Radio | 15kHz to 60kHz | 15kHz to 60kHz |
Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
Transmitter Modes | 32.768 (33) kHz,8.192 (8) kHz | 32.768 (33) kHz,8.192 (8) kHz,512 Hz,640 Hz |
Depth Range | Line 0.3m to 3m,Line 1ft to 10ft,Sonde 0.3m to 3m,Line 1ft to 10ft | Line 0.3m to 3m,Line 1ft to 10ft,Sonde 0.3m to 9.99m,Line 1ft to 32.77ft |
Depth Accuracy* | 10% | 10% |
Environmental Standard | IP66 | IP66 |
Operating Temperature | -20 °C to +50 °C,-4 °F to +122°F | -20 °C to +50 °C,-4 °F to +122°F |
Battery | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline |
Battery operating time *** | 15 h | 15 h |
Dimensions (HxWxD) | 760 x 250 x 85 mm,30 x 10 x 3.4 inches | 760 x 250 x 85 mm,30 x 10 x 3.4 inches |
Weight with batteries | 2.7Kg,5.95 lbs | 2.7Kg,5.95 lbs |
*Depth to an undistorted signal,*** Constant use at 20°C/68°F
