Applications
Steel constructions
Guard rails
Consoles
Ladders
Cable trays
Machines
Staircases
Gates
Façades
Versions
Zinc-plated steel
Building materials
Approved for:
Concrete C20/25 to C50/60, non-cracked
Also suitable for:
Concrete C12/15
Natural stone with dense structure
Advantages

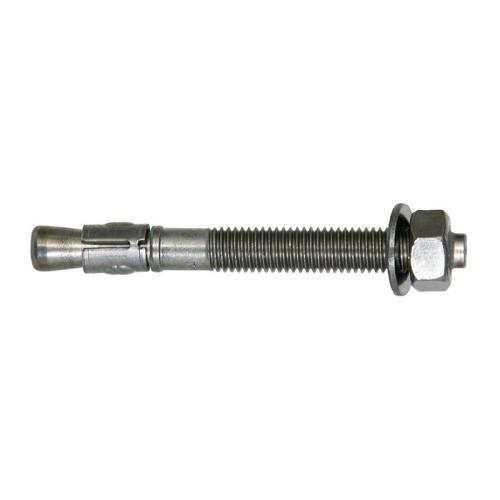

The standard anchorage depth achieves the maximum loadbearing capacities so fewer fixing points and smaller anchor plates are required.
With only a few hammer blows and minimal torque slippage installation is a simple process.
The drive-in pin protects the thread from damage, and ensures a faster installation and dismantling of the attachment.
Drill hole diameter [Ømm]: 10
Min. drill hole depth for through fixings [mm]: 68
Anchor length [mm]: 96
Max. usable length [mm]: 20
Width across nut [mm]: 17
