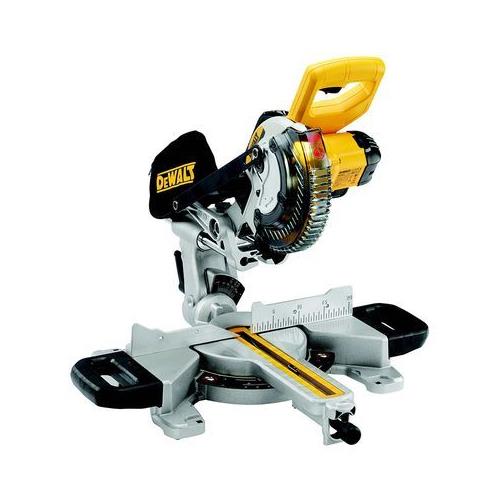

Double insulated DEWALT 65 mm fan cooled motor with replaceable brushes for maximum power in hard wood
New mitre angle adjustment system provides accurate and consistent setting of mitre angles between 0 and 48° right and 0 and 48° left
The dual fence mechanism gives maximum support in large material cuts at any angle or combination of angles
Horizontal rails create additional capacity for larger materials
The aluminium base construction provides stability to the saw while still retaining its portability
Mitre and bevel angle detents for quick and easy set up of the saw
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
Power Output: 590 Watt
Voltage: 18 V
Battery Capacity: NA Ah
Blade Speed: 3750 rpm
Blade Diameter: 184 mm
Blade Bore: 16 mm
Bevel Capacity: 48 °
Mitre Capacity [right/left]: 48/48 °
Cutting Capacity at 90°/90° (W x H): 250 x 50 mm
Cutting Capacity at 45°/90° (W x H): 176x50 mm
Cutting Capacity at 90°/45° (W x H): 250x35 mm
Max. Cutting Capacity at 45°/45°: 176x35 mm
Weight: 11.5 kg
Depth: 590 mm
Length: 490 mm
Height: 590 mm
Hand/Arm Vibration - Cutting Wood: <2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Power: 93 dB(A)
Sound Power Uncertainty: 2.0 dB(A)
Sound Pressure: 88 dB(A)
Sound Pressure Uncertainty: 2.0 dB(A)
Battery chemistry: XR Li-Ion
