Quality down to the finest detail.
Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake
(KA-UG-R, KA-UG-L and UG-KAPEX incl. in the contents)
Main applications
Trimming skirting boards and cornices up to 120 mm in height – no calculations
Cutting boards and panels up to 305 x 88 mm
Trimming crown mouldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick

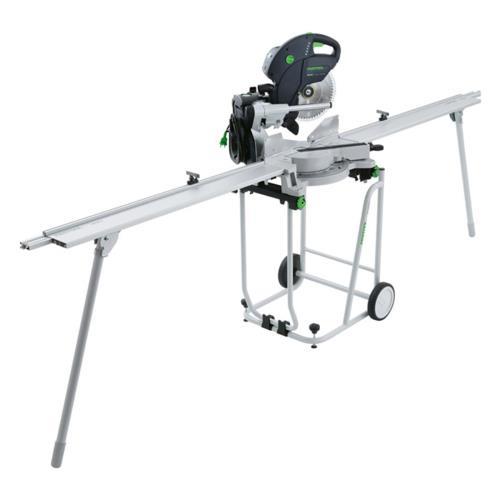

Underframe facilitates and supports KAPEX applications
Convenient transport on building and inst. sites thanks to KAPEX underframe
KAPEX underframe makes simple folding in for transport possible
Idle engine speed: 1 400 - 3 400 min⁻¹
Power consumption: 1 600 W
Weight: 21.5 kg
Saw blade diameter: 260 mm
Cutting depth at 45°/90°: 215 x 88 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth 45°/45° (right): 215 x 35 mm
Crown moulding diagonal cut 45°/90°: 168 mm
Inclination angle: 47/47 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Cutting depth 50°/90° (left): 196 x 88 mm
Cutting depth 60°/90° (right): 152 x 88 mm
Cutting depth 45°/45° (left): 215 x 55 mm
Mitre angle: 50/60 °
Special cutting depth 90°/90°: 60 x 120 mm
Special cut. depth 45°/90° (left): 40 x 120 mm
Special cutting depth 45°/90° (right): 20 x 120 mm
Crown moulding diagonal cut at 90°/90°: 168 mm
Work height: 900 mm
Dust extraction connection dia.: 27/36 mm
Noise and vibration values
Sawing: Uncertainty (vibration) K: 1.50 m/s²
Sawing: A-weighted sound pressure level, LpA: 88 dB(A)
Sawing: A-weighted sound power level, LWA: 101 dB(A)
Sawing: Total vibration average, Ah: 2.5 m/s²
Sawing: Standards series EN 60745
Sawing: Uncertainty (noise) K: 3 dB
Items included
KS 120 EB
HW universal saw blade W60
workpiece clamp
operation tool
underframe
adjustable stop
telescopic slide-out scale
fold-out pedestal and carry case
in carton
