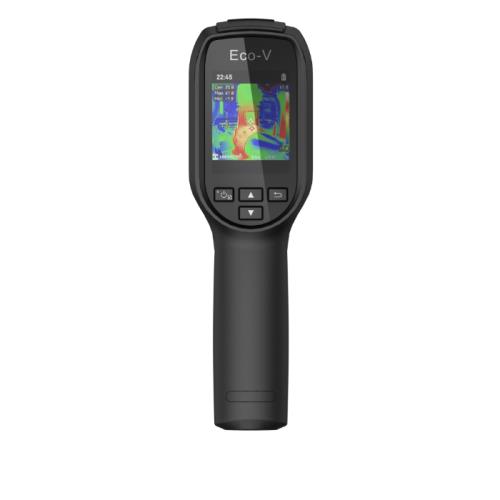

The Hikmicro ECO-V Thermal Imaging Camera featuring a dual camera boasting a built in IR camera and visible camera, allowing users to switch between three images modes (Thermal, Visual and Fusion). Using the The Fusion mode, operators are able to blend key details from a 0.3M pixel visual camera to an IR image allowing for extra detail and clarity to images. The Hikmicro ECO-V boasts a 96 x 96 (9,216 pixel) camera that can be boosted to 240 x 240 (57,600 pixels) using Hikmicro SuperIR image enhancement technology when viewing live data thanks the 25 Hz image frequency and when capturing images.
The Hikmicro ECO-V features a 1-click IR and visual image storage allowing users to save a visual and thermal image simultaneously with one click. The camera allows a user to choose between a number of colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm so the correct colour scale can be chosen each time.
The Hikmicro ECO-V boasts a 50º Field off View allowing for large areas to be scanned quickly in a number on environments such as air inflammation, water leaks and insulation issues. The Hikmicro provides users with a thermal image camera that is able to detect temperature between -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading. The 2.4" LCD screen shows full screen radiometric images and automatically tracks the maximum/minimum and centre spots to pinpoint temperature discrepancies quickly and easily. Accuracy is further enhanced thanks to the class II laser pointer showing users the centre point of a chosen target.
The Hikmicfro ECO-V boasts rechargeable battery with an 8 hour battery life. Auto power off settings further preserve the battery life allowing for a full days use in the field.
The Hikmicro ECO-V is a rugged and durable thermal image camera thanks to its IP54 rating, protecting the camera from dust and water ingress. Drop tested to 2m and with a three year manufacturers warranty, users have peace of mind the camera is built to used even in the most challenging of environments.
What's In The Box?
Hikmicro ECO-V Thermal Imaging Camera
USB 2.0 A to USB Type-C Cable
Quick Start Guide
Calibration Certificate
IR Resolution: 96 x 96 (9,216 Pixels)
SuperIR 240 x 240 (57,600 pixels)
Built in IR camera and visible camera allowing to switch between 3 image modes (Thermal/Visual/Fusion)
Save visual and thermal images simultaneously in one click
NETD: <50 mK (@25ºC, F#=1.0)
Image Frequency: 25Hz
Centre Spot, Hot Spot, Cold Spot temperature measurements
25Hz image frequency
Class II laser pointer
Built-in 4GB flash memory for approximately 30,000 pictures
Up to 8 hours continuous usage
IP54 rated
Drop tested to 2m
Six colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion
0.1m minimum focus distance
240 × 320 Resolution, 2.4”LCD Screen
Hikmicro part number: HM-TP30-1AQF-Eco-V
