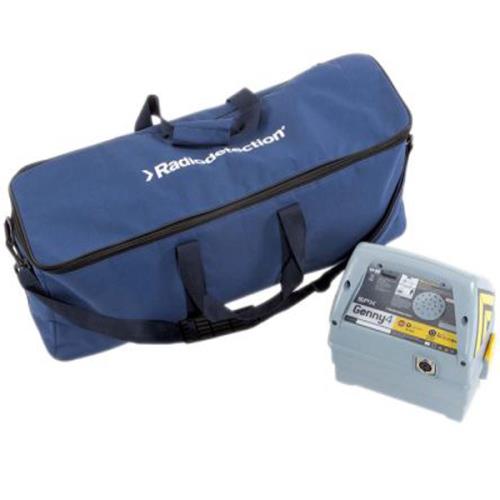

Genny4 Signal Generator (UK Version) and Soft Carrying Bag Pack,The Genny4 is a signal-generating tool that is used to locate the presence of underground utilities that do not generate their own detactable signals. The signal is bounced back to a CAT4 cable avoidance tool and the information received can be used to make a map of the underground area under test.
Generation of standard 33kHz signal output
Small Diameter Locate function for location of telecoms and street lighting
Adjustable Signal Boost for location at greater distances and depths
Accessory connection socket allows different accessories to be equipped to the unit
Runs on 4 x D-Cell batteries
Built-in loudspeaker and accessory storage tray
Portable design with handle for use out in the field
Built for use with the CAT4 range of cable avoidance tools Enables on-demand estimation of the depth of buried utilities ( CAT4+, eCAT4+ and gCAT4+ models only)
Accessory Type: Cable Avoidance Genny Kit
For Use With: CAT4, CAT4+, eCAT4, eCAT4+, gCAT4 and gCAT4+
Supplied with: Genny4 Signal Generator, direct connection leads, earth stake and soft carrying bag.
Cable Avoidance Tools,Reliable cable avoidance systems to locate buried cables and metallic pipes and help prevent costly and potentially deadly cable hits. Twin differential antenna technology plus sophisticated signal processing techniques provides superior rejection of unwanted signals and accurate locate response for effective operation in congested sites, and sites with overhead cables.
Cable Detection Depth :3 (Line) m, 7 (Sonde) m
Best Depth Accuracy :±5%
Best Location Accuracy :±10%
Depth Indicator :Yes
Live AC Conductor Indicator: Yes
Measurement Mode :Genny
Tester Type: Cable Detection
Battery Type: LR20 (D Type NiMH)
Power Source :Battery
Weight :2.7kg
Maximum Operating Temperature :+50°C
Minimum Operating Temperature :-20°C
