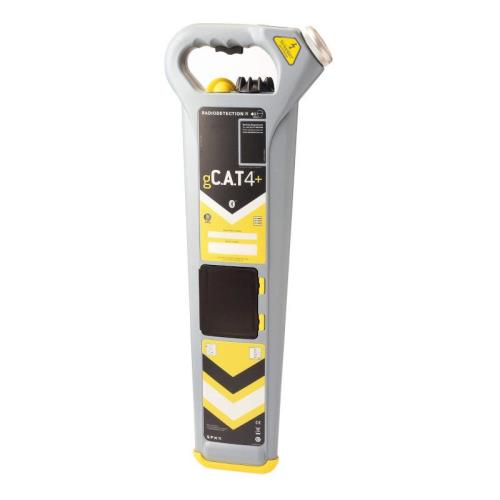

Radiodetection gCAT4+
The Radiodetection gCAT4+ features Depth Estimation Capability, Data Logging and the GPS/GNSS receiver enables usage and location analysis and reporting.
The C.A.T4™ and Genny4™ range represents the latest evolution of the highly popular Cable Avoidance Tools, as pioneered by Radiodetection, enabling operators to work more efficiently, more safely and to manage their C.A.T4 and Genny4 fleet more effectively.
DETECT MORE, DETECT FASTER
The new C.A.T4 digital platform delivers highly refined locate capabilities, specifically designed to help the operator find more buried utilities. The C.A.T4 Avoidance Mode™ lets the operator check an intended excavation area for Power, Radio and Genny signals, and pinpoint located utilities in a single scan. Features such as the bargraph 'tidemark' enable an operator to quickly spot a peak response and zero-in on a buried conductor.
DIG MORE SAFELY
Radiodetection’s proprietary StrikeAlert™ has been improved to reduce the number of shallow cable strikes. The C.A.T4 guides users towards better and safer working practices through its optional SWING™ Rate detector and Service Due date warning.
Optional data acquisition capabilities allow Plant Supervisors to administer their fleet more safely and effectively by providing comprehensive logs of C.A.T4 usage for analysis and personnel development.
C.A.T4 is a safety-critical precision instrument and the optional 30-day countdown to the Service Due date, CALSafe™ and innovative eCert™ on-line system calibration validation capabilities are designed to reinforce company and recommended service policies.
DATA ACQUISITION
eC.A.T4™ series products can store over a year’s worth of the key measurements and modes of operation. C.A.T Manager™ can be used to export log files to enable detailed data usage analysis offering multiple benefits such as identifying training and development needs, and providing independent historical records of the instrument’s use. Backed-up data on a PC gives virtually unlimited record keeping for the life of the product.
gC.A.T4 units are equipped with an internal GPS/GNSS receiver providing positional data logged every second into the C.A.T4 internal memory and showing where the operator was working. gC.A.T4 data logs can be exported as CSV, XLM or KML files that can be imported into map services like Google Maps® or Google Earth®.
DYNAMIC OVERLOAD PROTECTION
Radiodetection’s unique digital signal processing capabilities equips the C.A.T4 with the ability to reject electrical interference. Dynamic Overload Protection gives C.A.T4 series products the ability to continue operating in electrically challenging areas, such as near substations and under power cables, where other locators’ detection circuitry may be overloaded and no longer function.
AVOIDANCE MODE™
Sweep an area of Power, Radio and Genny signals simultaneously, saving time. C.A.T4 lets operators control the sensitivity of each mode/signal, enabling buried utilities to be pinpointed in a single pass, while Real Sound provides audio feedback derived directly from the utility located, easing identification to maximise speed whilst maintaining safety.
ECERT™
eCert provides a fast and thorough test of key circuitry elements within C.A.T4, and validates their validation performance against the original factory calibration over the internet.
eCert™, activated through the C.A.T Manager software, provides a fast, thorough and convenient test of the key locating circuitry within C.A.T4, and validates its performance against the original factory calibration. Following an eCert test pass, a Radiodetection Calibration Certificate for that C.A.T4 can be printed or saved.
What's more, C.A.T Manager can reproduce the original factory calibration certificate, or any eCert certificates that it has produced, on demand.
SWING™
Radiodetection C.A.Ts are designed to respond exceptionally fast to even the smallest detectable underground signals. Radiodetection's research into underground signal detection has shown that the ability of an operator to identify these buried utilities is directly affected by careless working practices such as excessive or rapid swinging.
HIGH VISIBILITY DISPLAY WITH BACKLIGHT
The C.A.T4’s high visibility display helps to minimise the possibility of misreading critical information from the unit. The high contrast and automatic backlight illumination provide optimum visibility in all light conditions.
GENNY4 SIGNAL BOOST
The Genny 4 offers, alongside its standard power mode, a Signal Boost feature which increases the output signal by up to 10 times allowing you to locate over extra distance and depth. Additionally, the simultaneous Small Diameter Locate frequency design aids detection of smaller cables including spurs.
Note: All CAT4 and Genny4 products are Network Rail approved.
Highly contrast display with auto-backlight
4 modes - Genny, Power, Radio and Avoidance mode
Digital depth when using a Genny transmitter
Real sound - signals can be easily distinguished from each other and from background noise
1 Watt of power
Dual frequency
USB 2.0 for eCERT certification and software updates
Instructions
1 Year Warranty
