01 Type-C Port & Lightning Port

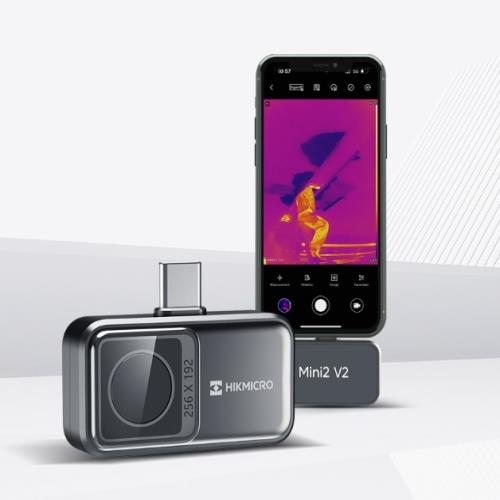

HIKIMICRO Mini2 V2 compatible with the latest iPhone 15 series and Android devices. Equipped with Lightning to Type-C adapter suitable for iPhone14 and earlier models.
02 Super Clear Thermal Image
Mini2 V2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
03. Wide Angle
HIKMICRO Mini2 V2 with a 50° wide angle lens provides a large FOV, which is ideal for scanning walls, floors, and facades for finding issues like water leaks, insulation issues, and air infiltration.
04. Accurate Temperature Measurements
Mini2 V2 accurately measures temperatures from -20°C (-4°F) to 400°C (752°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.
01. Mini Size
At just 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in) and weighing only 20 g (0.71oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
02. Plug and Play
HIKIMICRO Mini2 V2 Instantly attaches to your iPhone & Android smartphone or tablet and is ready to go in seconds.,*Adapters for Thick Phone Case, compatible with phones that have an Otterbox case.,*Extension Cable for convenient inspection, scan difficult-to-view and hard-to-reach areas.
03. Battery-free
HIKIMICRO Mini2 V2 is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
04. Durable and Rugged
Designed for where you work, live or relax, the HIKMICRO Mini2 V2 features IP40-rated aluminum alloy housings, pass strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.
01.Image & Temperature Measurement
HIKMICRO Mini2 V2 with PIP mode, Custom Palettes and 15 Preset Palettes,,Video and Image Capture make it easier to work.
2.Multiple Professional Settings
Providing professional settings allows you to get the best thermal imaging images and temperature readings of different surfaces.
HIKMICRO VIEWER
HIKMICRO Viewer app allows you to generate reports in the field quickly, customize job site data, adjust measurement settings, add annotations, and share with customers or managers.
HIKIMICRO ANALYZER
HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.
What's in the Box,Carry Case,Extension Cord,Extra long Adapter,Extra long Adapter,user Manual
Infrared Image
IR Resolution - 256 × 192 (49,152 pixels),NETD - < 40 mK (@ 25 °C, F#=1.0),Image Frequency - 25 Hz,Detector Pitch - 12 μm,Spectral Range - 7.5 to 14 μm,Focal Length - 3.5 mm,F-number - F1.0,Field of View (FOV) - 50° × 37.2°,Focus Mode - Focus Free,SuperIR - Yes, on captured images and live view,Min. Focus Distance - 0.2 m (0.66 ft)
Image Display
Image Modes - Thermal, PIP,Color Palettes - White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Measurement and Analysis
Object Temperature Range - -20°C to 400°C(-4°F to 752°F ),Accuracy Max - (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F),Measurement Tools - Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line .,Level and Span Mode - Auto/Manual
,General
Power Consumption - 360 mW,Protection Level - IP40,Drop Test Height - 1 m (3.28 ft),Working Temperature Range - -10°C to 50°C (14°F to 122°F ),Storage Temperature Range - -20°C to 60°C (-4°F to 140°F ),Weight - Approx. 20 g (0.044 lb),Dimension - 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in),Interface - USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter),Device Compatibility - iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices,Software Compatibility - HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
