The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly.
Additionally, these products feature a pendulum lock to secure the laser during transport or if dropped.

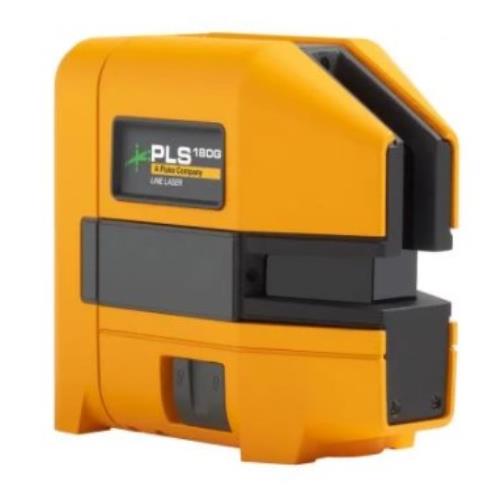

This professional self-leveling cross line laser level in both red and green is equipped for multiple applications including wall construction, acoustic ceiling installation, tile installation, residential and commercial construction.
Kit includes magnetic L-bracket for fast, easy overhang and center- line measurements
Rotary levels: PLS 180R, 180G
Battery: 3 x AA Alkaline IEC LR6
Battery Life, Continuous Use
Green: ≥ 3 hours (both lasers)
Point Laser Direction: 90° up, down, left, right
Line Fan Angle
Horizontal: ≥ 180°
Vertical: ≥ 130°
Working Range
Line Laser
Without SLD: ≤15 m (50 ft.)
With SLD: 6 m to 60 m (20 ft. to 200 ft.)
Laser Leveling
System: Automatic, Pendulum
Range: 4°
Line Laser Width: ≤2 mm at 5 m
Temperature
Line Laser Width: ≤2 mm at 5 m
Operating: -10 °C to 50 °C (14 °F to 122 °F)
Storage
With Batteries: -18 °C to 50 °C (-0.4 °F to 122 °F)
Without Batteries: -20 °C to 70 °C (-13 °F to 158 °F)
Relative Humidity: 0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Size (H x W x L): 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
Weight: ~ 0.6 kg (1.3 lb.)
Safety: IEC 61010-1: Pollution Degree 2
Laser: IEC 60825-1:2014 Class 2
Light Source: Semiconductor laser diode
Max Output Power: < 1 mW
Wavelength: 525 nm ± 5 nm
