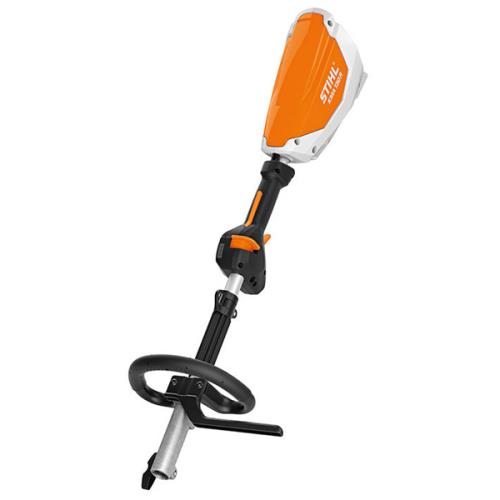

Stihl Kma130r Cordless Kombi 36volt Body Only

Powerful cordless Kombi Engine with high torque and low weight.

At only 3.2kg this is the lightest KombiEngine in the range.

Ideal for work in noise sensitive areas and prolonged use due to the low vibration levels.

Quick-release coupling - The quick-release coupling allows the KombiSystem to be quickly dismantled into two parts for easy transport and storage – and then re-assembled quickly without tools.

Operating handle with speed regulation - Depending on the task, the maximum speed can be regulated in three stages. This saves energy and extends the battery life. The operating handle has "Operator Presence Control" with self-resetting locking lever, preventing unintentional starting of the device.

EC-Motor - The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.

Loop Handle - The loop handled grass trimmers and brushcutters are ideal for working in areas where space is limited, e.g. thinning between bushes and shrubs.

Socket - To transfer power, the socket and the tool is connected to the STIHL AP or AR batteries using the connecting cable. This means that the battery can be conveniently worn on the body.

Rated voltage V 36

Weight kg 1) 3.2

Sound power level dB(A) 2) 104

Sound pressure level dB(A) 2) 92

Vibration level left/right m/s² 3) 5.8/5.2

Blowing force with BG-KM N 15

Air speed with BG-KM m/s 4) 58

Throughput with BG-KM m³/h 4) 815

Max. air speed with BG-KM m/s 67

Max. throughput with BG-KM m³/h 4) 1.110

Length to coupling sleeve cm 92

Working minutes per battery charge with FS-KM, AC and AP 100 min 5) 13/8/6

Working minutes per battery charge with FS-KM, AC and AP 200 min 5) 26/15/12

Working minutes per battery charge with FS-KM, AC and AP 300 min 5) 38/23/18

Working minutes per battery charge with FS-KM, AC and AR 1000 min 5) 100/63/50

Working minutes per battery charge with FS-KM, AC and AR 2000 min 5) 150/92/75

Working minutes per battery charge with FS-KM, AC and AR 3000 min 5) 190/115/90

Working minutes per battery charge with FS-KM, GSB and AP 100 min 5) 24/16/13

Working minutes per battery charge with MB-KM, and AP 200 min 5) 50/32/25

Working minutes per battery charge with MB-KM, and AP 300 min 5) 75/45/40

Working minutes per battery charge with MB-KM, and AR 1000 min 5) 200/130/100

Working minutes per battery charge with MB-KM and AR 2000 min 5) 300/190/15

Working minutes per battery charge with MB-KM, and AR 3000 min 5) 370/240/190

Working minutes per battery charge with FCB-KM and AP 100 min 5) 11/9/6

Working minutes per battery charge with FCB-KM and AP 200 min 5) 22/17/11

Working minutes per battery charge with FCB-KM and AP 300 min 5) 32/25/17

Working minutes per battery charge with FCB-KM and AR 1000 min 5) 90/70/45

Working minutes per battery charge with FCB-KM and AR 2000 min 5) 130/100/70

Working minutes per battery charge with FCB-KM and AR 3000 min 5) 160/130/85

Working minutes per battery charge with KW-KM and AP 100 min 5) 15/13/12

Working minutes per battery charge with KW-KM and AP 200 min 5) 30/25/23

Working minutes per battery charge with KW-KM and AP 300 min 5) 45/40/35

Working minutes per battery charge with KW-KM and AR 1000 min 5) 125/110/90

Working minutes per battery charge with KW-KM and AR 2000 min 5) 180/155/140

Working minutes per battery charge with KW-KM and AR 3000 min 5) 230/190/180

Working minutes per battery charge with BF-KM and AP 100 min 5) 15/13/12

Working minutes per battery charge with BF-KM and AP 200 min 5) 30/25/23

Working minutes per battery charge with BF-KM and AP 300 min 5) 45/40/35

Working minutes per battery charge with BF-KM and AR 2000 min 5) 180/155/140

Working minutes per battery charge with BF-KM and AR 1000 min 5) 125/110/90

Working minutes per battery charge with BF-KM and AR 3000 min 5) 230/190/180

Working minutes per battery charge with KB-KM and AP 100 min 5) 15/13/12

Working minutes per battery charge with KB-KM and AP 200 min 5) 30/25/23

Working minutes per battery charge with KB-KM and AP 300 min 5) 45/40/35

Working minutes per battery charge with KB-KM and AR 1000 min 5) 125/110/90

Working minutes per battery charge with KB-KM and AR 2000 min 5) 180/155/140

Working minutes per battery charge with KB-KM and AR 3000 min 5) 230/190/180

Working minutes per battery charge with BG-KM and AP 100 min 5) 13/7/5

Working hours per battery charge witht BG-KM and AP 200 min 5) 25/14/10

Working minutes per battery charge with BG-KM and AP 300 min 5) 35/20/13

Working minutes per battery charge with BG-KM and AR 1000 min 5) 100/60/40

Working minutes per battery charge with BG-KM and AR 2000 min 5) 150/85/60

Working minutes per battery charge with BG-KM and AR 3000 min 5) 190/110/70

Working minutes per battery charge with HT-KM and AP 100 min 5) 20/15/9

Working minutes per battery charge with HT-KM and AP 200 min 5) 40/30/18

Working minutes per battery charge with HT-KM and AP 300 min 5) 60/45/30

Working minutes per battery charge with HT-KM and AR 1000 min 5) 170/125/75

Working minutes per battery charge with HT-KM and AR 2000 min 5) 250/180/110

Working minutes per battery charge with HT-KM and AR 3000 min 5) 310/230/140

Working minutes per battery charge with HL-KM 0° and AP 100 min 5) 60/50/40

Working minutes per battery charge with HL-KM 0° and AP 200 min 5) 120/95/80

Working minutes per battery charge with HL-KM 0° and AP 300 mn 5) 180/145/120

Working minutes per battery charge with HL-KM 0° and AR 1000 min 5) 500/400/330

Working minutes per battery charge with HL-KM 0° and AR 2000 min 5) 730/580/480

Working minutes per battery charge with HL-KM 0° and AR 3000 min 5) 900/730/600

Working minutes per battery charge with FH-KM 145° and AP 100 min 5) 60/50/40

Working minutes per battery charge with FH-KM 145° and AP 200 min 5) 120/95/80

Working minutes per battery charge with FH-KM 145° and AP 300 min 5) 180/145/120

Working minutes per battery charge with FH-KM 145° and AR 1000 min 5) 500/400/330

Working minutes per battery charge with FH-KM 145° and AR 2000 min 5) 730/580/480

Working minutes per battery charge with FH-KM 145° and AR 3000 min 5) 900/730/600

Working minutes per battery charge with HL-KM 145° and AP 100 min 5) 60/50/40

Working minutes per battery charge with HL-KM 145° and AP 200 min 5) 120/95/80

Working minutes per battery charge with HL-KM 145° and AP 300 min 5) 180/145/120

Working minutes per battery charge with HL-KM 145° and AR 1000 min 5) 500/400/330

Working minutes per battery charge with HL-KM 145° and AR 2000 min 5) 730/580/480

Working minutes per battery charge with HL-KM 145° and AR 3000 min 5) 900/730/600

Working minutes per battery charge with FCS-KM and AP 100 min 5) 11/9/6

Working minutes per battery charge with FCS-KM and AP 200 min 5) 22/17/11

Working minutes per battery charge with FCS-KM and AP 300 min 32/25/17

Working minutes per battery charge with FCS-KM and AR 1000 min 5) 90/70/45

Working minutes per battery charge with FCS-KM and AR 2000 min 5) 130/100/70

Working minutes per battery charge with FCS-KM and AR 3000 min 5) 160/130/85

1) Without battery ,2) K-factor according to DIR 2006/42/EC = 2.0 dB (A) ,3) K-factor according to DIR 2006/42/EC = 2.0 m/s ² ,4) In blower mode with round nozzle ,5) Level 1/level 2/level 3, the battery working times for each battery charge are estimates and may vary depending on how the tool is used.
