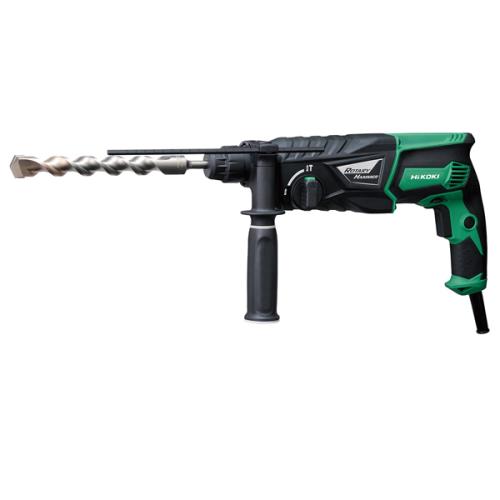

Approximately 2 times longer life *1 achieved by reliable structure that includes a hammering mechanism same as our large hammers.
Hammering mechanism features air channel system （NEW） - Up to 50% more volume of air cushion *1 reduces wear and damage inside cylinder.
Ball bearings （NEW） - Ball bearing seals in grease and holds temperature low to protect melt down of gear cover.
New internal pressure control mechanism （NEW） - Provides smooth airflow in or out of the gear cover to stabilize and ensure hammering action.
Powerful motors and optimized hammering to improve work efficiency.
Rotation Only - For drilling in steel or wood, etc. (with optional drill chuck and chuck adapter)
Rotation + Hammering - For drilling into concrete, etc.
Hammering Only - (3-mode models only) - Chiseling of concrete or groove digging, etc.
Angle adjustment function (3-mode models only) - When using a cold chisel or cutter, the orientation of the tool tip can be adjusted by setting the change lever as shown on the left.
Capacity: Concrete - 3.4 - 26mm (1/8" - 1")
Capacity: Steel - 13mm (1/2")
Capacity: Core bit - 25 - 50mm (1" - 2")
Capacity: Wood - 32mm (1-1/4")
Power Input - 830W
Bit Shank - SDS-plus
No-Load Speed - 0 - 1,100min-1
Full-Load Impact Rate - 0 - 4,300min-1
Overall Length - 367mm (14-7/16")
Weight (excluding cord) *3 - 2.8kg (6.2lbs.)
Vibration Total Values (triax vector sum) *4 Hammer drilling into concrete - Vibration emission value ah, HD = 14.8m/s2 Uncertainty K = 1.5m/s2
