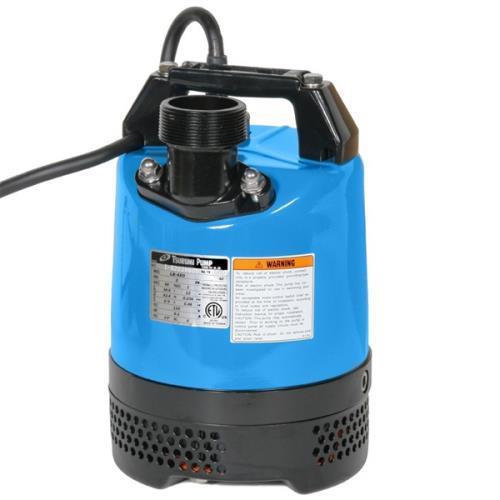

The TSURUMI LB-pumps are small and robust submersible contractor's pumps with a wide range of applications whereever water has to be moved.
Electrode auto control system available - Handles like a non-automatic pump - no special installation procedures. Sensitive electrodes detect water to start up pump operation even when foreign matters are present. Relay sensor completely molded in resin and covered by rubber case for protection against rough handling.
ø Discharge bore mm: 50
Temperature (Pumping Fluid): 0-40°C
Type of Fluid (Pumping Fluid): Spring water, Rain water, Ground water, Sand carrying water
Impeller (Pump Components): Semi-Vortex impeller
Shaft Seal (Pump Components): Double mechanical seal
Bearings (Pump Components): Shielded ball bearings
Impeller (Pump Material): Urethane rubber, Chromium iron casting
Casing (Pump Material): Ethylene propylene rubber
Suction Plate (Pump Material): Steelplate+Urethane rubber
Shaft Seal (Pump Material): Silicon carbide in oil bath
Type, Poles (Motor): Induction motor, 2 poles, IP68
Lubrication (Motor): Turbine oil (ISO VG32)
Motor Protector (built-in): Miniature protector, Circle thermal cut-out
Insulation (Motor): Insulation class E, Insulation class B
Phase / Voltage (Motor): Single phase 230V / 110V / 50Hz
Casing (Motor Material): Aluminium die casting
Shaft (Motor Material): Stainless steel EN-X6Cr13
Cable (Motor Material): Rubber, H07RN-F
Discharge Connection: Threaded flange/Hose coupling
Bore mm: 50
Motor output kW: 0.48
Rated current A: 2.9
Head max. m: 11.0
Capacity max. l/min: 225
Dry weight kg w/o cable: 10.4
Max. solid handling ø mm: 6
Pressure resistance max. m: 10
Cable length m: 10
