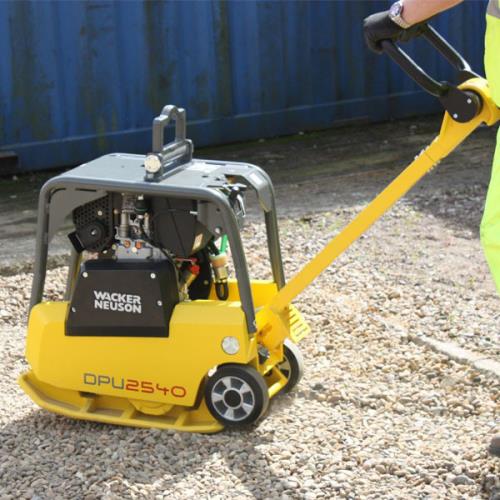

These all-rounders for applications such as interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility. These plates are also extremely reliable. Their robustness as well as the sum of many well thought out details make sure of this. Amongst these details we find the throttle lever that retracts for its protection or an especially job site oriented fuel tank pipe. And then there is a kind of “mobility warranty”, because the wheel set is not only always ready for use but also extremely long-lasting.
Operating Weight 160 kg
Shipping Weight Incl. Packaging 172 kg
Shipping Size L x W x H 760 x 470 x 1290 mm
Baseplate (W x L) 400 x 703 mm
Working Width 400 mm
Machine Height (without guide handle) 736 mm
Working Height of Handle 800 - 1143 mm
Baseplate Thickness 10 mm
Max. Centrifugal Force 25 kN / 5625 lbf
Vibration Frequency 90 Hz / 90 vpm
Max. Forward / Reverse Travel 21 m/min
Max. Gradeability (depending on soil) 30%
Compacted Area (depending on soil) 504 m2/h
Engine Hatz 1B20 Air-Cooled Single Cylinder 4-Stroke Diesel Engine
Max. Rated Power @ Rated Speed* 3.5 kW / 4.6 hp @ 3600 rpm
Power Rating Specification DIN ISO3046
Rated Power Output 1.5 kW / 2.01 hp @ 2800 rpm
Displacement 243 cm3
Fuel Consumption 0.4 litres/h
Tank Capacity 3 litres
Max. allowable tilt of engine in continuous operation 25°
