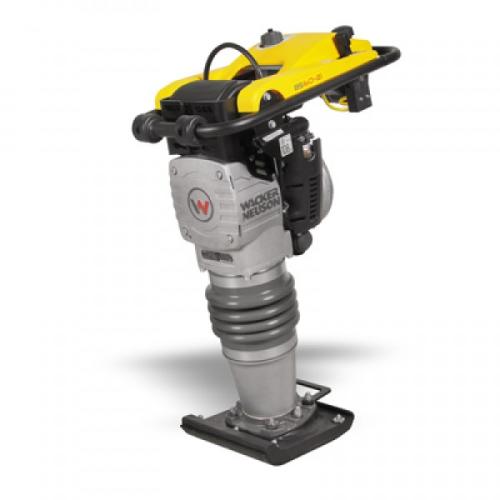

Powered by Wacker Neuson Neuson's exclusive WM 80 engine, the only 2-stroke engine specifically designed and built for vibratory rammers and meets EPA and European air emission standards.
Purge bulb evacuates air from the fuel line for easy starting.
The fuel valve and kill switch are integrated into the throttle lever to reduce complexity of operation.
Exclusive carburetor compensates fuel/air mixture for optimum performance and extended air filter life.
A unique three-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. A filter minder tells the operator when the air filter needs to be changed.
Auto release choke provides industry leading safety and ease of starting.
The guide handle's engineered shockmount system reduces HAV (hand-arm vibration) and improves operator comfort.
Automatic shutoff feature will shut down the unit if left idling for an extended period of time, reducing emissions and carbon build-up.
Cast aluminum recoil start with oversized durable rope extends life in harsh environments.
An integrated muffler wraps around the engine allowing for closer compaction to structures and protects the muffler.
Length x width x height 673 x 343 x 965 mm
Shoe size (w x l) 280 x 336 mm
Operating weight 66 kg
Shipping weight (including packaging) 71 kg
Shipping size 990 x 380 x 690 mm
Stroke 80 mm
Percussion rate 700 blows/min
Travel speed 9.8 m/min
Max. area capacity 164 m2/h
Engine Type Air Cooled, 2-Stroke, Single Cylinder Wacker Neuson WM 80 petrol engine
Displacement 80 cm3
Max. rated power at rated speed* 1.8 kW / 2.4 hp @ 4400 rpm
Power rating specification 80/1269/EEC, ISO3046-1
Fuel consumption 1.2 litres/h
Fuel tank capacity 3 litres
Fuel to oil ratio 120:1
Specifications may change due to continuous product development.
* Actual power output may vary due to conditions of specific use
