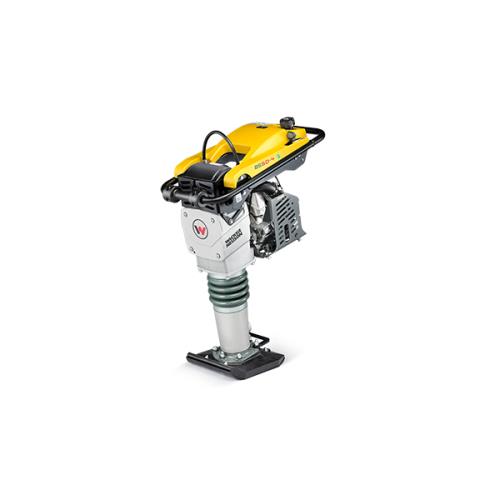

Wacker Neuson's 4 stroke rammers are designed for high performance and long life.
The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results.
The compact design and low center of gravity is ideal for the compaction of cohesive and mixed soils in trenches and other confined areas.
Easy to start and simple operation. Convenient single-lever operation for start-up, idling and shut-off
Low oil protection: When starting the unit, a sensor detects no or low oil and does not allow the engine to start, protecting the engine
A unique four-stage air filtration system provides a virtually dust-free engine for longer life and improved durability.
The system includes a last chance filter that protects the engine during air filter maintenance
Large and flexible lift point
Easy loading and stowing by transport rollers on the handle
Operate three times longer in the optimum speed range than without compensation
Three times longer service intervals
The robust GXR 120 Honda engine operates in normal operation well below its performance limit. This protects the engine and extends its service life.
Comfortable operation - Only one lever for idling, starting and stopping
Operating weight lb: 143
Ramming shoe size (WxL) in: 11 x 13.4
L x W x H in: 26.5 x 13.5 x 37
Percussion rate max. blows/min: 656
Stroke at the ramming shoe in: 2.4
Impact force lbf: 3,597
Operating speed ft/min: 23.3
Surface capacity - Compaction ft²/h: 1,281
Engine / Motor type: GXR 120
Engine / Motor manufacturer: Honda
Engine / Motor: Air-cooled single-cylinder four-cycle gasoline engine
Displacement in³: 7.38
Operating performance (DIN ISO 3046-1) hp: 3.6
at rpm rpm: 4,100
Fuel consumption US gal/h: 0.26
Fuel tank capacity US gal: 0.77
